June 16, 2019
Setup Kubernetes Service Mesh Ingress to host microservices using ISTIO – PART 3
This is Part 3 of the Blog series we have started (Part-1 and Part-2). Previous blogs where more about Setting up Cluster and Creating Docker images. We will see in this Blog how a typical microservices is deployed in K8 service mesh using ISTIO
- Who should read this Blog
- Short introduction
- Problem we are trying to solve
- Stack used
- Actual implementation
- Cluster Cleanup
Who should read this Blog
This Blog will be quick start guide to get the basic understanding of service mesh ISTIO. Will be using Book Info application to deploy and check the various out of the box feature of ISTIO
Short introduction
This is not an advanced level tutorial.
- I am using EKS to setup the K8 Cluster because :
- Creates HA control Plane
- IAM integration out of the box
- Certificate Management
- setup ELB
- Using AWS as cloud provider
- Using Helm for deployment
EKS
Amazon EKS runs the Kubernetes management infrastructure for you across multiple AWS availability zones to eliminate a single point of failure. Amazon EKS is certified Kubernetes conformant so you can use existing tooling and plugins from partners and the Kubernetes community. Applications running on any standard Kubernetes environment are fully compatible and can be easily migrated to Amazon EKS.
REF: https://aws.amazon.com/eks/
EKSCTL
eksctl is a simple CLI tool for creating clusters on EKS – Amazon’s new managed Kubernetes service for EC2. It is written in Go, and uses CloudFormation.
REF: https://github.com/weaveworks/eksctl
HELM
Helm helps you manage Kubernetes applications — Helm Charts help you define, install, and upgrade even the most complex Kubernetes application.
REF: https://helm.sh/

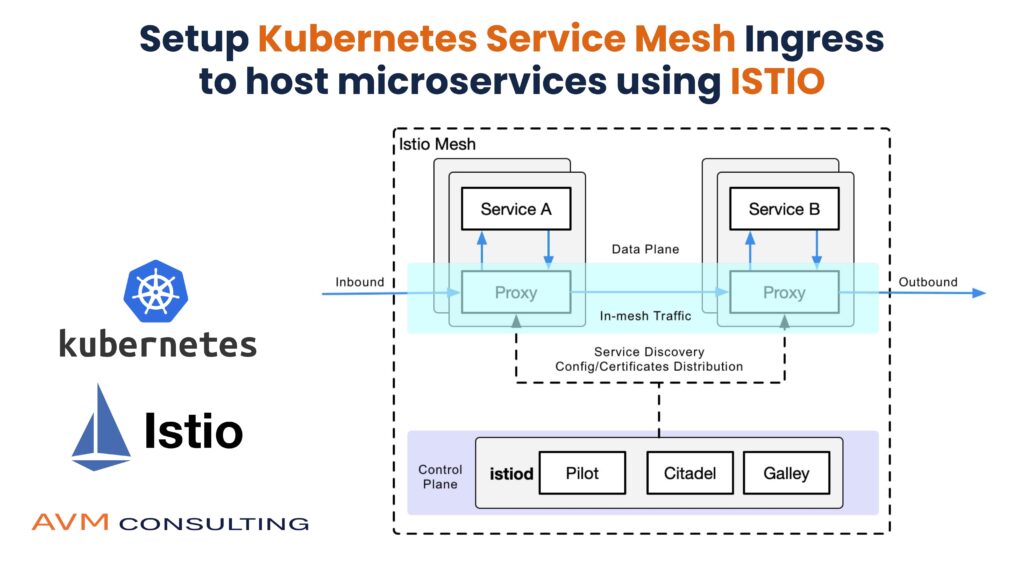

ISTIO
Istio is a platform which helps in service discovery, managing and connecting microservices, Canary and A/B testing.
The other out of the box features provided by Istio are :
- Grafana: Analytics and monitoring of services in the cluster.
- Promethues: Used for collecting the metrics from the cluster at regular interval.
For more detailed explanation : https://istio.io/docs/concepts/what-is-istio/overview/
Problem we are trying to solve
We are trying to demonstrate deployment of microservices in service mesh and understand how microservices communicate with each other using the ingress in K8 Cluster.
Stack used
Actual implementation
Make sure Kubectl is installed. Please refer previous blogs for installing kubectl. also
Setup EKSCTL in MAC
- Make sure aws sdk is configured in mac os
- Install IAM Authenticator (brew install aws-iam-authenticator)
master ●✚ curl --silent --location "https://github.com/weaveworks/eksctl/releases/download/latest_release/eksctl_$(uname -s)_amd64.tar.gz" | tar xz -C /tmp
master ●✚ mv /tmp/eksctl /usr/local/bin
# Verify Install
master ●✚ eksctl version
[ℹ] version.Info{BuiltAt:"", GitCommit:"", GitTag:"0.1.35"}
Launch EKS
This may take some time and will create 1) VPC 2) Subnets 3) Certificates 4) API endpoint and Load balancer
master ●✚ eksctl create cluster \
--name=avm-blog-3 \
--version=1.12 \
--node-type=t3.medium \
--nodes=3 \
--nodes-min=1 \
--nodes-max=4 \
--node-ami=auto
###################### Output ###############################################
[ℹ] using region us-west-2
[ℹ] setting availability zones to [us-west-2c us-west-2a us-west-2b]
[ℹ] subnets for us-west-2c - public:192.168.0.0/19 private:192.168.96.0/19
[ℹ] subnets for us-west-2a - public:192.168.32.0/19 private:192.168.128.0/19
[ℹ] subnets for us-west-2b - public:192.168.64.0/19 private:192.168.160.0/19
[ℹ] nodegroup "ng-a1c7c70d" will use "ami-0923e4b35a30a5f53" [AmazonLinux2/1.12]
[ℹ] creating EKS cluster "avm-blog-3" in "us-west-2" region
[ℹ] will create 2 separate CloudFormation stacks for cluster itself and the initial nodegroup
[ℹ] if you encounter any issues, check CloudFormation console or try 'eksctl utils describe-stacks --region=us-west-2 --name=avm-blog-3'
[ℹ] 2 sequential tasks: { create cluster control plane "avm-blog-3", create nodegroup "ng-a1c7c70d" }
[ℹ] building cluster stack "eksctl-avm-blog-3-cluster"
[ℹ] deploying stack "eksctl-avm-blog-3-cluster"
[ℹ] building nodegroup stack "eksctl-avm-blog-3-nodegroup-ng-a1c7c70d"
[ℹ] deploying stack "eksctl-avm-blog-3-nodegroup-ng-a1c7c70d"
[✔] all EKS cluster resource for "avm-blog-3" had been created
[✔] saved kubeconfig as "/Users/***********/.kube/config"
[ℹ] adding role "arn:aws:iam::303882392497:role/eksctl-avm-blog-3-nodegroup-ng-a1-NodeInstanceRole-1E0WFDTJ9JHL6" to auth ConfigMap
[ℹ] nodegroup "ng-a1c7c70d" has 0 node(s)
[ℹ] waiting for at least 1 node(s) to become ready in "ng-a1c7c70d"
[ℹ] nodegroup "ng-a1c7c70d" has 3 node(s)
[ℹ] node "ip-192-168-42-118.us-west-2.compute.internal" is not ready
[ℹ] node "ip-192-168-6-130.us-west-2.compute.internal" is ready
[ℹ] node "ip-192-168-65-11.us-west-2.compute.internal" is not ready
[✖] neither aws-iam-authenticator nor heptio-authenticator-aws are installed
[ℹ] cluster should be functional despite missing (or misconfigured) client binaries
[✔] EKS cluster "avm-blog-3" in "us-west-2" region is ready
###################### Output ###############################################
Verify EKS Install
master ●✚ kubectl get nodes
NAME STATUS ROLES AGE VERSION
ip-192-168-42-118.us-west-2.compute.internal Ready <none> 32m v1.12.7
ip-192-168-6-130.us-west-2.compute.internal Ready <none> 32m v1.12.7
ip-192-168-65-11.us-west-2.compute.internal Ready <none> 32m v1.12.7
CLuster Overview
EKS Details
Nodegroups created
Setup Kubernetes Dashboard
master ●✚ kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v1.10.1/src/deploy/recommended/kubernetes-dashboard.yaml
secret/kubernetes-dashboard-certs created
serviceaccount/kubernetes-dashboard created
role.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
deployment.apps/kubernetes-dashboard created
service/kubernetes-dashboard created
####### Verify Install ########
master ●✚ kubectl get pods --namespace kube-system | grep kubernetes-dashboard
kubernetes-dashboard-65c76f6c97-clnkv 1/1 Running 0 5m25s
The above dashboard is installed in Private network to access from browser we will use kube proxy(tunneling). This is for security reason. However there are options to make it public (not in scope of the blog)
kubectl proxy --port=8080 --address='0.0.0.0' --disable-filter=true &
W0616 13:19:43.747800 77245 proxy.go:140] Request filter disabled, your proxy is vulnerable to XSRF attacks, please be cautious
# Then use the following to access the Dashboard
http://localhost:8080/api/v1/namespaces/kube-system/services/https:kubernetes-dashboard:/proxy/#!/overview?namespace=kube-system
# Use toekn to login. to get login use following command
aws-iam-authenticator token -i avm-blog-3 --token-only
k8s-aws-v1.aHR0cHM6Ly9zdHMuYW1hem9uYXdzLmNvbS8_QWN0aW9uPUdldENhbGxlcklkZW50aXR5JlZlcnNpb249MjAxMS0wNi0xNSZYLUFtei1BbG
dvcml0aG09QVdTNC1ITUFDLVNIQTI1NiZYLUFtei1DcmVkZW50aWFsPUFLSUFVTlFHTktPWTcyN0pMS00yJTJGMjAxOTA2MTYlMkZ1cy1lYXN0LTElMkZzd
HMlMkZhd3M0X3JlcXVlc3QmWC1BbXotRGF0ZT0yMDE5MDYxNlQ
Dashboard )
Setup ISTIO
- Download Istio and change directory
master ●✚ curl -L https://git.io/getLatestIstio | ISTIO_VERSION=1.1.8 sh -
Downloading istio-1.1.8 from https://github.com/istio/istio/releases/download/1.1.8/istio-1.1.8-osx.tar.gz ... % Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 612 0 612 0 0 1215 0 --:--:-- --:--:-- --:--:-- 1214
100 14.1M 100 14.1M 0 0 613k 0 0:00:23 0:00:23 --:--:-- 1872k
Istio 1.0.8 Download Complete!
Istio has been successfully downloaded into the istio-1.1.8 folder on your system.
# Setup the istoctl path and verify
master ●✚ cd istio-1.1.8
master ●✚ export PATH=$PATH:/Users/***********/******/code/K8/istio-1.1.8/bin
master ●✚ istioctl version
Version: 1.1.8
GitRevision: 11b640bb11593138a904f81e572d40e5e70b089b
User: root@d76cad0a-8935-11e9-887b-0a580a2c0403
Hub: docker.io/istio
GolangVersion: go1.10.4
BuildStatus: Clean
# Add Helm Repo Chart
master ●✚ helm repo add istio.io https://storage.googleapis.com/istio-release/releases/1.1.8/charts/
"istio.io" has been added to your repositories
Install Istio with Helm
Make sure you are in istio directory as most of the sample/k8 objects are in the install folder and have helm installed
Refer: https://helm.sh/docs/using_helm/#installing-helm for installing helm
# Create Istio Namespace.
master ●✚ kubectl create namespace istio-system
#Install all the Istio Custom Resource Definitions (CRDs) using kubectl apply, and wait a few seconds for the CRDs
to be committed in the Kubernetes API-server:
master ●✚ helm template install/kubernetes/helm/istio-init --name istio-init --namespace istio-system | kubectl apply -f -
configmap/istio-crd-10 created
configmap/istio-crd-11 created
serviceaccount/istio-init-service-account created
clusterrole.rbac.authorization.k8s.io/istio-init-istio-system unchanged
clusterrolebinding.rbac.authorization.k8s.io/istio-init-admin-role-binding-istio-system unchanged
job.batch/istio-init-crd-10 created
job.batch/istio-init-crd-11 created
# Verify CRD's it should be 53
master ●✚ kubectl get crds | grep 'istio.io\|certmanager.k8s.io' | wc -l
53
#Install Default Profile for Prod deployments
master ●✚ helm template install/kubernetes/helm/istio --name istio --namespace istio-system | kubectl apply -f -
############### Curtailed Output ###############
poddisruptionbudget.policy/istio-galley created
poddisruptionbudget.policy/istio-ingressgateway created
poddisruptionbudget.policy/istio-policy created
poddisruptionbudget.policy/istio-telemetry created
poddisruptionbudget.policy/istio-pilot created
configmap/istio-galley-configuration created
----
----
-----
rule.config.istio.io/promtcpconnectionopen created
rule.config.istio.io/promtcpconnectionclosed created
handler.config.istio.io/kubernetesenv created
rule.config.istio.io/kubeattrgenrulerule created
rule.config.istio.io/tcpkubeattrgenrulerule created
kubernetes.config.istio.io/attributes created
destinationrule.networking.istio.io/istio-policy created
destinationrule.networking.istio.io/istio-telemetry created
############### Curtailed Output ###############
Verify Istio
Verify the Configuration you elected all exist and pods in istio-system namespace
master ●✚ kubectl get svc -n istio-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
istio-citadel ClusterIP 10.100.79.162 <none> 8060/TCP,15014/TCP 2m20s
istio-galley ClusterIP 10.100.111.160 <none> 443/TCP,15014/TCP,9901/TCP 2m26s
istio-ingressgateway LoadBalancer 10.100.117.186 ab54d0978901411e99bd2023cce26310-454040857.us-west-2.elb.amazonaws.com 15020:32150/TCP,80:31380/TCP,443:31390/TCP,31400:31400/TCP,15029:32251/TCP,15030:30236/TCP,15031:30552/TCP,15032:31444/TCP,15443:31327/TCP 2m25s
istio-pilot ClusterIP 10.100.217.101 <none> 15010/TCP,15011/TCP,8080/TCP,15014/TCP 2m22s
istio-policy ClusterIP 10.100.28.69 <none> 9091/TCP,15004/TCP,15014/TCP 2m24s
istio-sidecar-injector ClusterIP 10.100.126.132 <none> 443/TCP 2m20s
istio-telemetry ClusterIP 10.100.47.126 <none> 9091/TCP,15004/TCP,15014/TCP,42422/TCP 2m23s
prometheus ClusterIP 10.100.228.73 <none> 9090/TCP 2m21s
master ●✚ kubectl get pods -n istio-system
NAME READY STATUS RESTARTS AGE
istio-citadel-7dbf78bf8f-f5vlt 1/1 Running 0 2m28s
istio-cleanup-secrets-1.1.8-w2872 0/1 Completed 0 2m58s
istio-galley-7f874545bd-blcjc 1/1 Running 0 2m34s
istio-ingressgateway-75479dbb99-vqz6n 1/1 Running 0 2m33s
istio-init-crd-10-js7zg 0/1 Completed 0 5m56s
istio-init-crd-11-4b4ch 0/1 Completed 0 5m56s
istio-pilot-6b488d9f66-fmc8f 2/2 Running 0 2m30s
istio-policy-6b5fbbb7bf-fvwnj 2/2 Running 1 2m32s
istio-security-post-install-1.1.8-8xm8f 0/1 Completed 0 2m55s
istio-sidecar-injector-5c77d99d8-7jgl4 1/1 Running 0 2m28s
istio-telemetry-5c9b4d6b95-tn7t8 2/2 Running 1 2m31s
prometheus-5977597c75-prl8l 1/1 Running 0 2m29s
Deploy the Application
After Istio is setup we will install one of the samples which is part of ISTIO download
master ●✚ kubectl apply -f <(istioctl kube-inject -f samples/bookinfo/platform/kube/bookinfo.yaml)
service/details created
deployment.extensions/details-v1 created
service/ratings created
deployment.extensions/ratings-v1 created
service/reviews created
deployment.extensions/reviews-v1 created
deployment.extensions/reviews-v2 created
deployment.extensions/reviews-v3 created
service/productpage created
deployment.extensions/productpage-v1 created
# Define the ingress gateway
master ●✚ kubectl apply -f samples/bookinfo/networking/bookinfo-gateway.yaml
gateway.networking.istio.io/bookinfo-gateway created
virtualservice.networking.istio.io/bookinfo created
# Verify the Gateway
master ●✚ kubectl get gateway
NAME AGE
bookinfo-gateway 26s
Verify Deployment and Services
The application will be in default gateway
master ●✚ kubectl get services
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
details ClusterIP 10.100.149.13 <none> 9080/TCP 4m36s
kubernetes ClusterIP 10.100.0.1 <none> 443/TCP 135m
productpage ClusterIP 10.100.51.72 <none> 9080/TCP 4m31s
ratings ClusterIP 10.100.64.106 <none> 9080/TCP 4m34s
reviews ClusterIP 10.100.194.249 <none> 9080/TCP 4m33s
Now to view the application, get the loadbalancer address( external ip) of istio-ingressgateway and paste http:///productpage see below
master ●✚ kubectl get svc istio-ingressgateway -n istio-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
istio-ingressgateway LoadBalancer 10.100.117.186 ab54d0978901411e99bd2023cce26310-454040857.us-west-2.elb.amazonaws.com 15020:32150/TCP,80:31380/TCP,443:31390/TCP,31400:31400/TCP,15029:32251/TCP,15030:30236/TCP,15031:30552/TCP,15032:31444/TCP,15443:31327/TCP 11m
Note
Keep Refreshing the Product Page and observe the Review section. This is Canary deployment with traffic going to all the version of code. refer https://github.com/istio/istio/blob/master/samples/bookinfo/networking/virtual-service-reviews-80-20.yaml for better understanding
Cluster Cleanup
Ideally one should cleanup the application and then the EKS cluster, since this is a Test cluster. I am directly deleting the EKS. PLEASE DO NOT DO THIS CLEANUP in LIVE SYSTEM
master ●✚ eksctl delete cluster --name=avm-blog-3
[ℹ] using region us-west-2
[ℹ] deleting EKS cluster "avm-blog-3"
[✔] kubeconfig has been updated
[ℹ] 2 sequential tasks: { delete nodegroup "ng-a1c7c70d", delete cluster control plane "avm-blog-3" [async] }
[ℹ] will delete stack "eksctl-avm-blog-3-nodegroup-ng-a1c7c70d"
[ℹ] waiting for stack "eksctl-avm-blog-3-nodegroup-ng-a1c7c70d" to get deleted
[ℹ] will delete stack "eksctl-avm-blog-3-cluster"
[✔] all cluster resources were deleted
By the way, check out our best AWS deal: http://avmconsulting.net/well-architected-review
